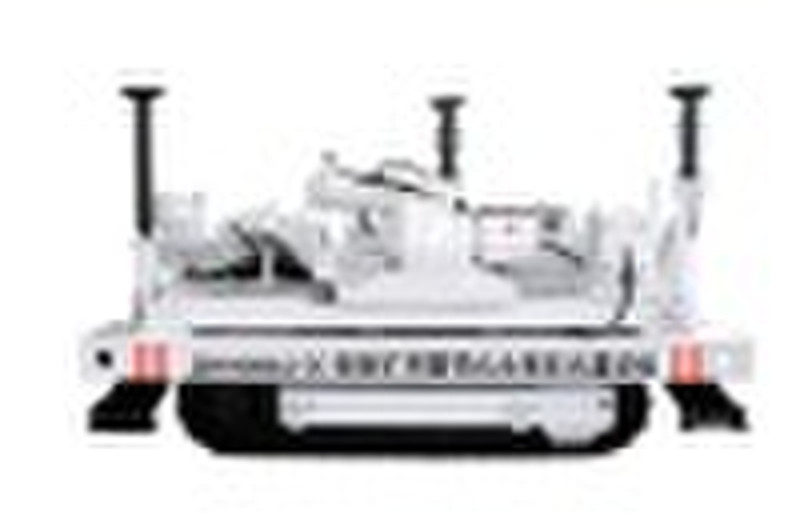

All hydraulic directional drilling rigs with track
Jingbo Yu
Contact person
Basic Information
| Type | Other |
|---|---|
| Condition | new |
| Place of Origin | Shaanxi China (Mainland) |
| Brand Name | MK |
| Model Number | ZDY6000LD(A)/6000LD/4000LD |
Directional drilling equipment can be used in gas drainage holes construction with high accuracy, can be also used in engineering directional drilling holes construction, such as water exploring and dewatering, geological structure exploring, coal seam thickness exploring, coal seam water injection, etc. Technical Specification ZDY6000LDA ZDY6000LD ZDY4000LD Drilling Ability m 1000/600 800/600 600/350 Hole Diameter mm 96/153 96/153 96/153 Brake Torque N.m 1000 1000 1000 Rating Torque N.m 3000/6000 3000/6000 4000 Rotation Speed r/min 50-190 50-190 70-240 Motor Power kW 90 75 55 Overall Dimension (L x W x H) m3.50X2.20X1.90 3.38X1.45X1.80 3.10X1.45X1.70 Mud Pump Displacement 1/min 120-350 118-320 118-320 Mud Pump Outlet Pressure MPa10.0-6.5 8.4-4.0 8.4-4.0 Directional Drilling Rod φ73mm1200m 1000m 750m Rotating Drilling Rod φ73mm 750m (optional) 750m (optional) 500m (optional)
-
